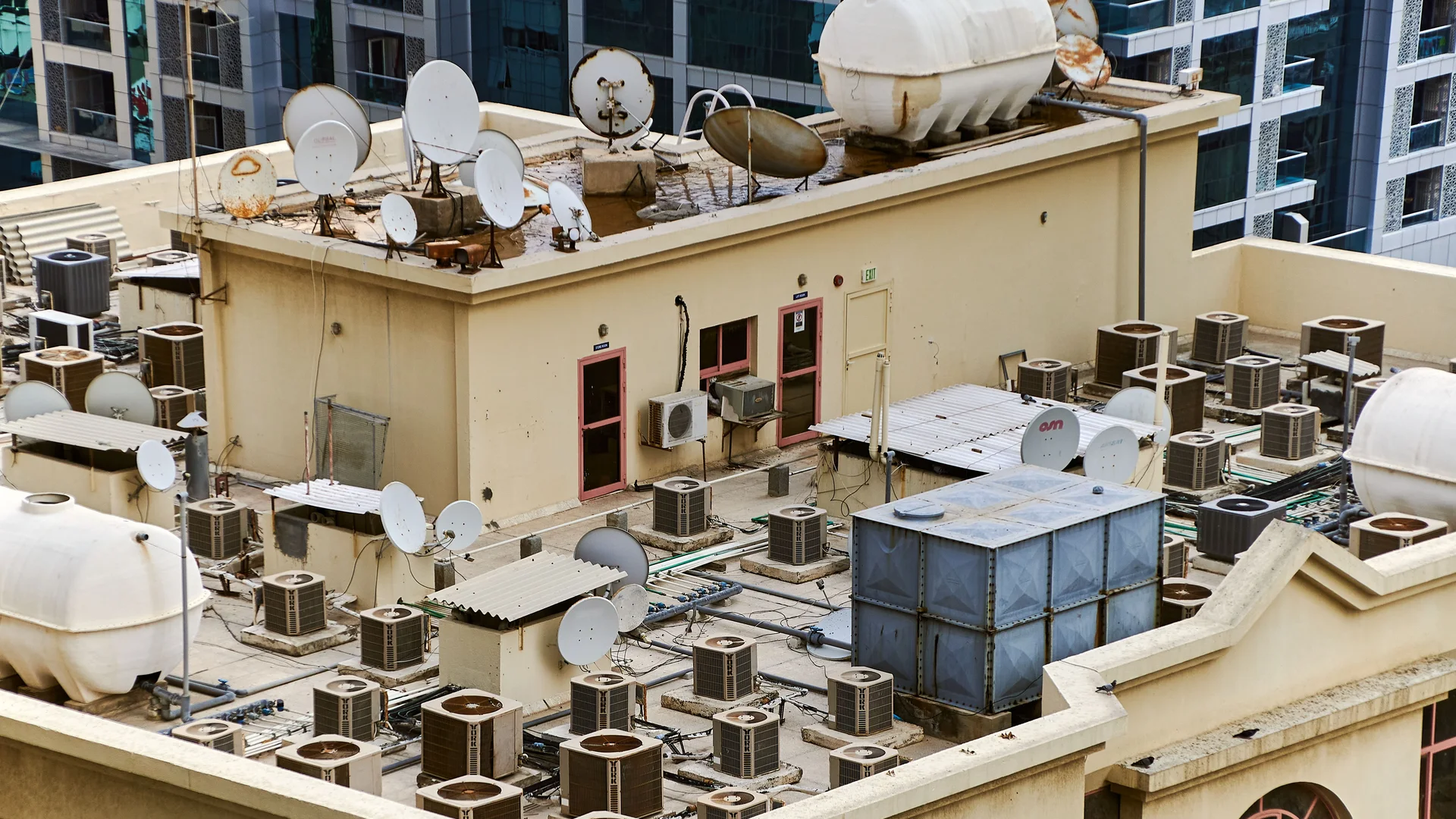

Parapet walls hide the roof edge from the street, support signs or screens, and provide a transition between the roof and exterior wall. They also create a long line of seams, corners, caps, and membrane terminations that must stay watertight while the building moves.
A stain near an outside wall may begin at the roof membrane, the coping above it, a masonry joint, a scupper, or a penetration through the parapet. Patching the closest visible crack can miss the actual water path.
How a Parapet Assembly Manages Water
The roof membrane typically rises from the horizontal roof onto the inside face of the wall. It may terminate beneath coping, counterflashing, or a termination bar. The wall top is then protected by metal coping, stone, precast concrete, or another cap designed to shed water.
Each layer has a different job. The membrane protects the roof side. Coping keeps water from entering the wall top. Flashing and joints manage transitions. The exterior wall handles water that reaches its face. A repair needs to respect that sequence rather than depend on one exposed bead of sealant.
Follow the stain uphill and outward
Water can enter beneath a coping joint, travel inside the wall, reach the roof deck, and appear below a different section. Record the interior location, roof elevation, wall face, nearby joints, and weather direction before choosing an opening to investigate.
Coping Joints and Corners
Metal coping comes in sections because the material expands and contracts. The joints between sections need splice plates, seals, or concealed details that allow movement while directing water away from the wall. Outside corners, inside corners, elevation changes, and end conditions add more transitions.
Look for open joints, buckled sections, loose edges, missing fasteners, failed sealant where it is part of the design, and staining below the cap. A section that lifts in wind may have an attachment problem even if the top still looks intact.
Membrane Flashing at the Wall
The vertical membrane must remain attached and continuous through corners and changes in height. Wrinkles, open laps, bridging at the base of the wall, fishmouths, punctures, or a loose termination can create an entry point. Movement may also pull flashing away from the substrate.
A dark line at the roof-to-wall angle can be dirt, surface moisture, or a sign of a stressed detail. Inspection should include gentle probing where appropriate, attachment review, and checks for wet materials rather than judging the condition by color alone.
Masonry, Panels, and Wall Openings
Brick, block, stucco, precast concrete, and metal wall panels each manage water differently. Cracked mortar, open panel joints, deteriorated coatings, displaced through-wall flashing, and unsealed mounts can admit water above the roof membrane.
Signs, conduit, cameras, guardrails, screens, and abandoned anchors often pass through or attach to parapets. Their fasteners and supports need their own waterproofing review. Removing equipment without closing the old holes can leave small openings that are easy to miss from the roof field.
Scuppers and Overflow Openings
A scupper interrupts the parapet so roof water can pass through the wall. The membrane, metal lining, corners, exterior conductor head, and downspout must work as one drainage path. Open seams or debris at that opening can affect both waterproofing and drainage.
Our guide to commercial roof drainage explains the complete path. Keep overflow openings clear and do not cover them with a patch, coating, new equipment, or stored material.
What a Focused Inspection Should Document
- 01Photograph the full perimeter by elevation, then take close views of every joint, corner, transition, and visible defect.
- 02Mark interior stains on a roof plan and compare them with coping joints, wall penetrations, scuppers, and membrane terminations above.
- 03Check whether coping is loose, distorted, corroded, poorly joined, or interrupted by later equipment mounts.
- 04Inspect membrane laps, corners, attachment, base transitions, punctures, and signs that material has pulled away from the wall.
- 05Record moisture findings and the condition of exposed substrate whenever a test opening or repair area is safely opened.
Build the Repair Around the Cause
A useful repair scope names the failed layer and shows how the new work ties into sound material. It should address wet insulation or sheathing, loose coping, incompatible metals, failed membrane flashing, moving joints, and wall openings that contributed to the leak.
If the surrounding roof also has damage from service traffic, review our commercial roof access guide. The closeout record should include concealed-condition photos, final detail photos, material information, and any maintenance instructions.
Frequently Asked Questions
What is a parapet on a commercial roof?
A parapet is a wall that extends above the roof surface at the building perimeter or around part of the roof. The roof membrane usually turns up the inside face, while coping or another cap protects the top of the wall.
Can coping metal cause a roof leak?
Yes. Open joints, failed splice details, loose sections, missing cleats, poorly sealed penetrations, or water driven beneath the metal can admit moisture. The actual entry point may be several feet from the interior stain.
Why does the roof membrane pull away from a parapet?
Movement, weak attachment, trapped moisture, aging adhesive, substrate deterioration, or installation problems can contribute. The cause should be inspected before the loose area is covered or patched.
Should parapet cracks be filled with sealant?
A compatible sealant may belong in a designed joint or limited repair, but a surface bead cannot correct loose coping, failed through-wall flashing, moving masonry, wet substrate, or a detached roof membrane.
What should a parapet repair estimate include?
It should identify the affected roof and wall layers, removal limits, wet-material findings, compatible materials, coping or flashing details, joint treatment, drainage effects, photos, and how the completed work will be checked.
